TAPIO 350 / 350 EXS
Length measurement
Diameter measurement
LOGGER Harvester - Control unit
with display, control boxes, connection cables
and consoles
Preselection switching module for assortment and shaping
17x0.75 boom cable from the Loggercontrol
to the harvester 15 m
2 boom cable connectors/couplings
Saw bar .404-2.0 14”
Saw chain .404-2.0 53
TAPIO 350 manual
Loggercontrol manual

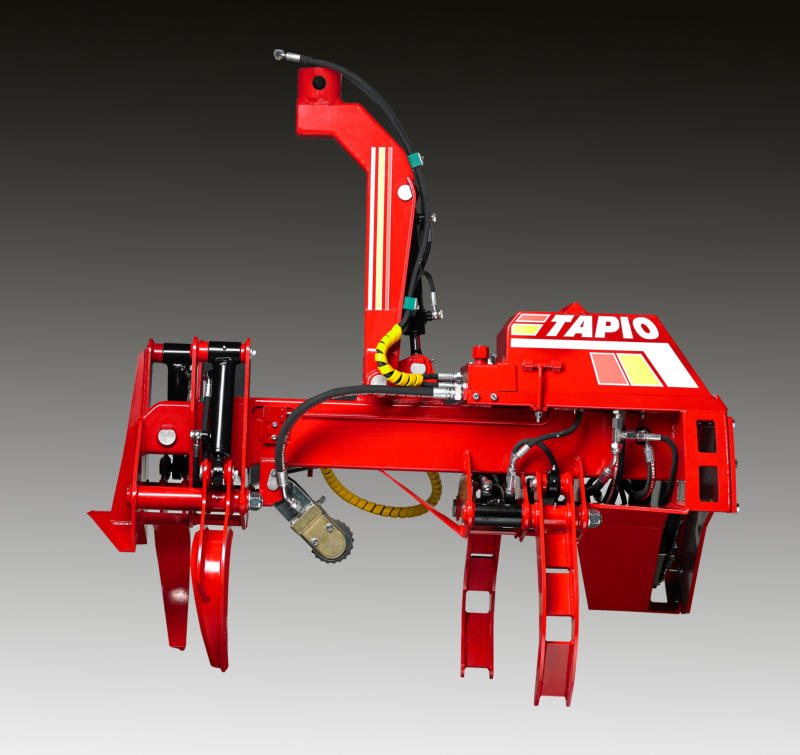

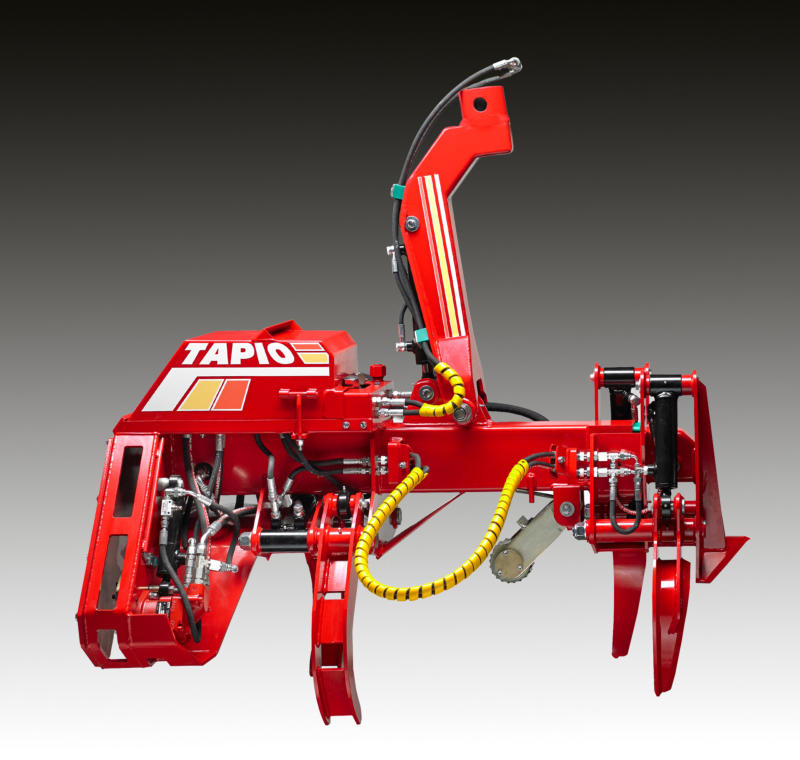

TAPIO 350 Stroke Harvester
Length x Width x Height 1450 x 850 x 700 mm
Weight 285 kg
Power supply 12/24 AC DC
Saw bar 14” 1.6 mm
Saw chain .404” 1.6 mm
Pump/Pressure 1500 rpm 60 - 80 l/min 160 bar
Push speed 0.8 m/sec
Limbing force 20 kN at 160 bar
23.75 kN / 190 bar
Max. felling diameter 350 mm
Min. limbing diameter 40 mm
Max. limbing diameter 300 mm
Power requirement 28 kW
Standard equipment for TAPIO 350 Harvester:
Ideal for: Timber trailers, A-frame cranes on the 3-point linkage
Agricultural tractors
or excavators 5-8 tons

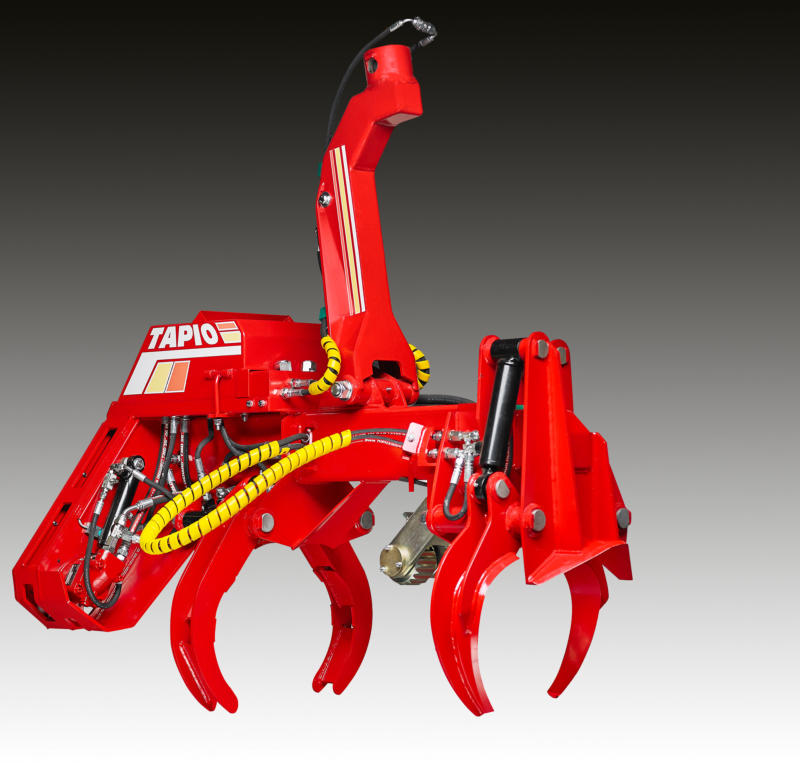

Tapio 350 EXS Harvester
The “EXS” version of the harvester has
two additional control valves installed:
one each for the rotator and the felling cylinder
operated via the harvester control system
only two ¾” hydraulic lines are required,
e.g., the hammer line on an excavator!
Hydraulic oil requirement only 80 Lt. / min.
