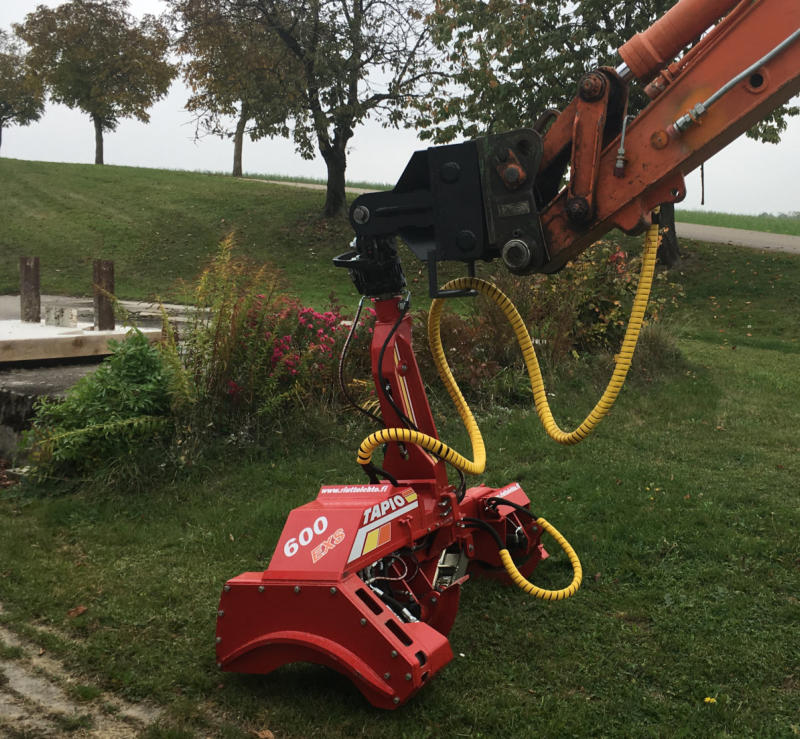

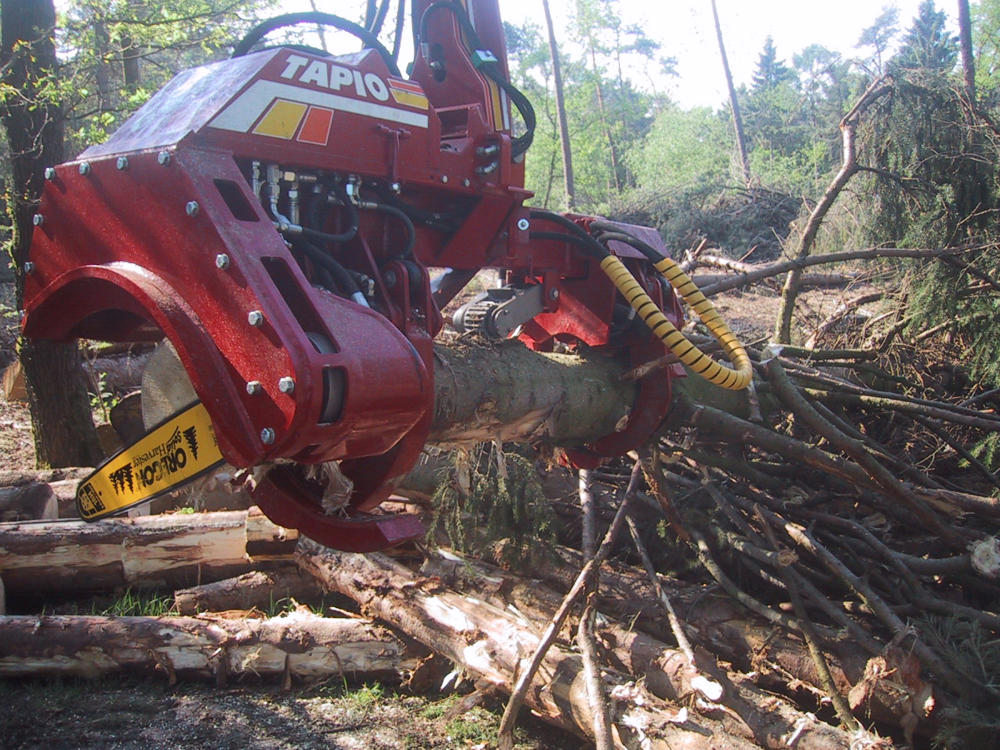

TAPIO 600 EXS
TAPIO 600 EXS STROKE -HARVESTER
Length x Width x Height 1650 x 800 x 700 mm
Weight 550 kg
Power supply 12/24 V DC
Saw bar 22” 2.0 mm
Saw chain .404” 2.0 mm
Pump / Pressure 1500 rpm 100 - 120 l/min 160 bar
Throw length 1000 mm
Throw speed 1 m/sec
Limbing force 31.40 kN at 160 bar (37.28 kN / 190 bar)
Max. felling diameter 550 mm
Max. limbing diameter 450 mm
Harvester power requirement 38 kW
Standard equipment for
Tapio 600 EXS Harvester:
TAPIO 600 Manual
Logger Control Manual
Length Measurement
Diameter Measurement
Logger Harvester Control Unit
with display, control boxes, connection cables
and consoles
Preselection module for assortment and shaping
Saw bar .404-2.0 22”
Saw chain .404-2.0 74
Cable from 2x0.75 + 2x1 + 2x2 from the
operator's cab control module to the
harvester's grapple module

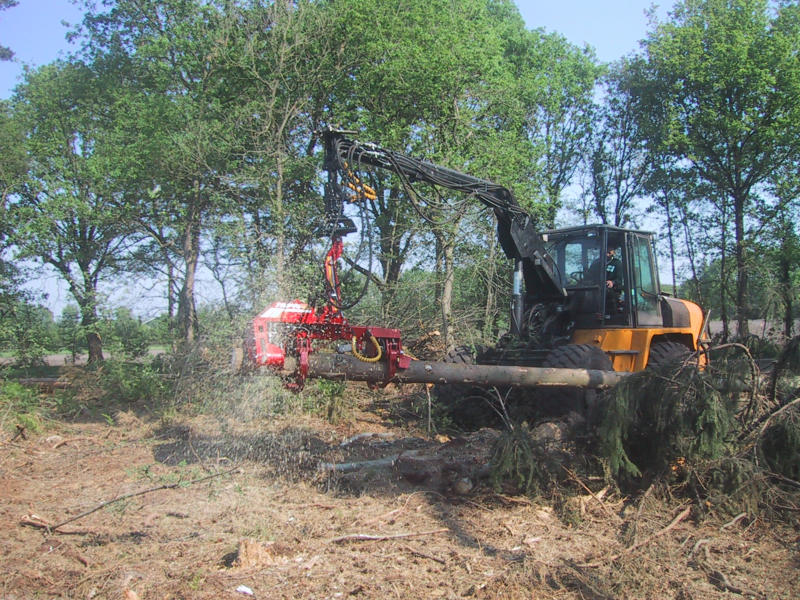

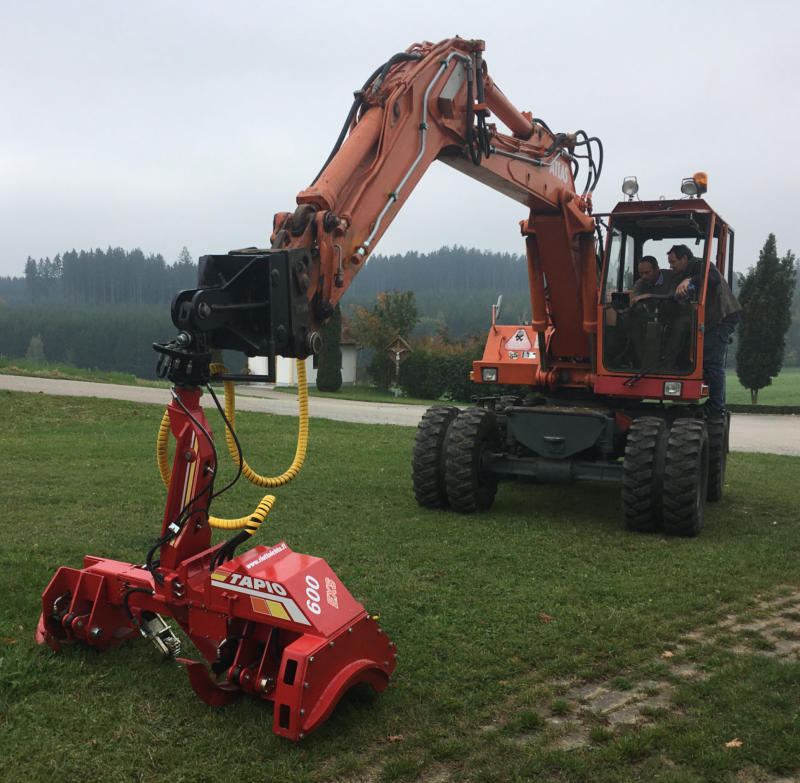

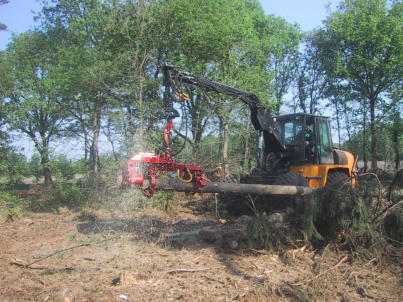

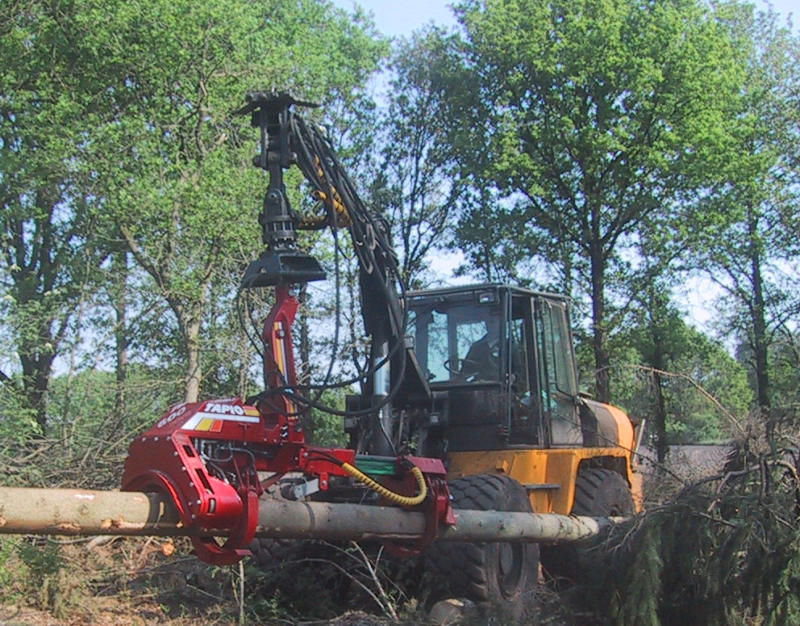

CARRIER VEHICLE:
8-16 t excavator
With interchangeable blades for different
stem diameters, e.g., for first thinning,
the upper delimbing blade is interchangeable
and the angle of attack can be changed.
